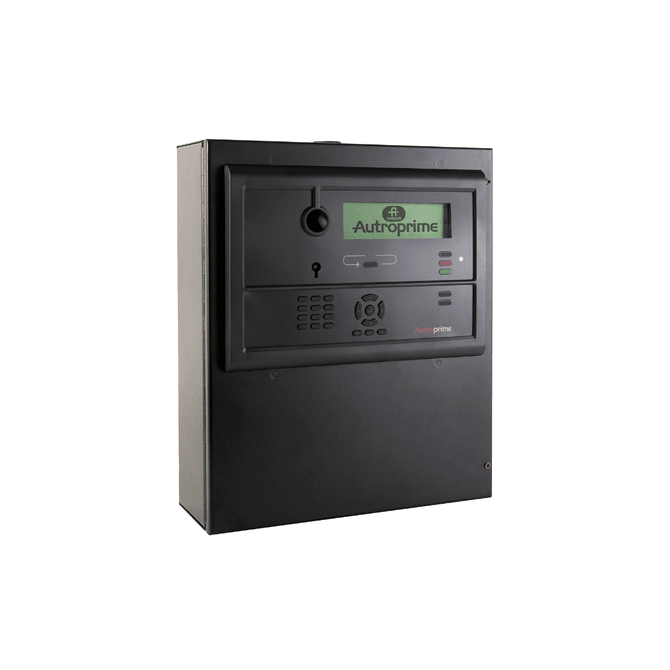

Fire Alarm Control Panel BS-200M

AutroPrime Fire Alarm Control Panel for small-to-medium-sized installations

The BS-200M is a full fire detection system with 4 loop drivers each controlling 127 devices. The operator panel may be mounted remotely with redundant connections both for signal and power.

The panel serves as a stand-alone panel. A maximum of 8 additional panels can be freely mixed and connected to the fire alarm control panel via the RS-485 panel bus, including repeater panels BS-211, information panels BV-210, fire brigade panels BU-210 and mimic drivers BUR-200. All alarm handling and system features can be configured, controlled and monitored from the panel.

The panel can accommodate up to four detection loops. The loops support most of our interactive detectors, several types of I/O devices for monitored outputs, open collector outputs, galvanic isolated inputs and monitored inputs. It has a 5A power module for battery charging. The panel is menu operated on a 8-line display, with 40 characters per line. The operator panel (BS-210), which is an integrated part of the BS-200M panel, can also be mounted separately outside the cabinet.

  • SelfVerify-function – Allows automatic testing of detectors
  • Time-saving – Automatic setup and addressing of detectors
  • Built in changeover – For primary/emergency mains power
  • USB functionality – For data transfer to/from memory stick
  • User-friendly – Display and operator controls
  • Easy to use – Back-lit operating buttons and text display suitable for night time operation
  • Versatile – Surface mounting or the integrated panel can be mounted separately in a 19’’ rack or console
  • Convenient – Four loops and output to VDR and Modbus
